Detail produk:
|
| Nama: | Heavy Stud Cylindrical Inch Cam Follower Hex Hole | Bahan: | Baja Berkualitas Bantalan Paduan Tinggi (Stainless Steel disesuaikan) |
|---|---|---|---|
| Metode pemasangan: | Lubang Hex | Rentang Ukuran: | Inci |
| Konfigurasi OD: | Diameter Luar Silinder | Elemen Bergulir: | Needle Roller - Pelengkap Penuh |
| Jenis: | Pejantan Berat | Lokasi Lubang Pelumasan: | Sisi tiang |
| Tipe Segel: | Tersedia Sealed dan Unsealed | Permukaan Selesai: | Lapisan Oksida Hitam |
| Cahaya Tinggi: | Pengikut Cam Tipe Pejantan hitam,Pengikut Cam Tipe Pejantan oksida,pengikut cam bantalan Lubang Hex |
||

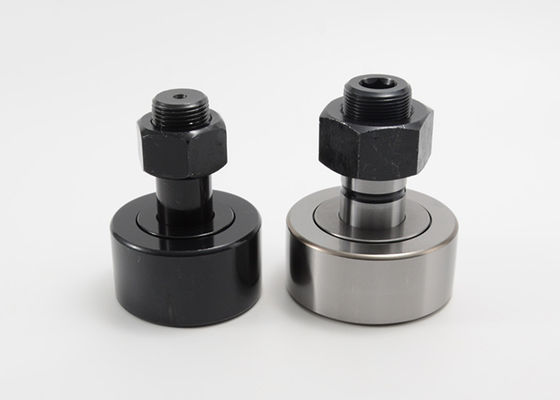

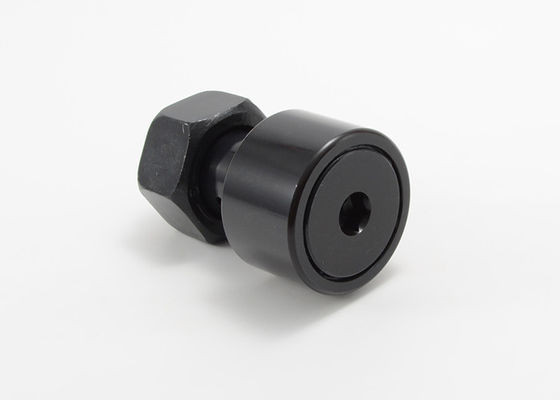

Heavy Stud Cylindrical Inch Cam Follower Stud Hex Hole CFH 1 3/4 B CFH 1 3/4 SB
MOUETTEmerancang dan memproduksi rangkaian lengkap pengikut cam untuk aplikasi industri, termasuk peralatan mesin, robot industri, produksi suku cadang elektronik, peralatan otomasi kantor, dan lingkungan keras yang memerlukan peningkatan ketahanan terhadap korosi.Pengikut cam dan roller track memberikan solusi anti gesekan untuk menerjemahkan rotasi menjadi gerakan linier atau mendukung beban dorong radial atau kombinasi murni tergantung pada jenis elemen rolling.
Fitur:
Pengikut Cam Seri Silinder Pejantan Berat dengan Lubang HexSpesifikasi:
| Buka segel | Tertutup | Rol Dia.(RD) | Lebar Rol (W) | Pejantan Dia.(SD) | Panjang Stud (SL) | Min.Panjang Benang (TL) | Baik THR'DS. |
| CFH 1/2 B | CFH 1/2 SB | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 16/9B | CFH 16/9 SB | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 5/8B | CFH 5/8 SB | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 11/16B | CFH 16/11 SB | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 3/4 B | CFH 3/4 SB | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 7/8B | CFH 7/8 SB | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 1B | CFH 1SB | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/8B | CFH 1 1/8 SB | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/4 B | CFH 1 1/4 SB | 1.250 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 3/8 B | CFH 1 3/8 SB | 1.375 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 1/2 B | CFH 1 1/2 SB | 1.500 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 5/8 B | CFH 1 5/8 SB | 1.625 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 3/4 B | CFH 1 3/4 SB | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 1 7/8 B | CFH 1 7/8 SB | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 2B | CFH 2SB | 2.000 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/4 B | CFH 2 1/4 SB | 2.250 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/2 B | CFH 2 1/2 SB | 2.500 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 2 3/4 B | CFH 2 3/4 SB | 2.750 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 3B | CFH 3SB | 3.000 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/4 B | CFH 3 1/4 SB | 3.250 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/2 B | CFH 3 1/2 SB | 3.500 | 2.000 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 |
| CFH 4B | CFH 4SB | 4.000 | 2.250 | 2.000 | 3 1/2 | 1 1/2 | 2-12 |
| Buka segel | Tertutup | Lubang Minyak | LUB.UKURAN PAS (F) | MerekomendasikanTorsi Penjepit (LBS.) | Peringkat Beban Dasar | ||
| Pusat Lubang (HC) | Lubang Dia.(HD) | Maks.Kapasitas Statis (LBS.) | Maks.Din.Kapasitas (LBS.) | ||||
| CFH 1/2 B | CFH 1/2 SB | - | - | - | 35 | 1580 | 680 |
| CFH 16/9B | CFH 16/9 SB | - | - | - | 35 | 1580 | 680 |
| CFH 5/8B | CFH 5/8 SB | - | - | - | 90 | 2480 | 955 |
| CFH 11/16B | CFH 16/11 SB | - | - | - | 90 | 2480 | 955 |
| CFH 3/4 B | CFH 3/4 SB | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 7/8B | CFH 7/8 SB | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 1B | CFH 1SB | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/8B | CFH 1 1/8 SB | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/4 B | CFH 1 1/4 SB | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 3/8 B | CFH 1 3/8 SB | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 1/2 B | CFH 1 1/2 SB | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 5/8 B | CFH 1 5/8 SB | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 3/4 B | CFH 1 3/4 SB | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 1 7/8 B | CFH 1 7/8 SB | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 2B | CFH 2SB | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/4 B | CFH 2 1/4 SB | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/2 B | CFH 2 1/2 SB | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 2 3/4 B | CFH 2 3/4 SB | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 3B | CFH 3SB | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/4 B | CFH 3 1/4 SB | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/2 B | CFH 3 1/2 SB | 16/11 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
| CFH 4B | CFH 4SB | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
