Detail produk:
|
| Nama: | Pengikut Cam Silinder Tipe Pejantan Inci | Bahan rol: | Baja Berkualitas Bantalan Paduan Tinggi (Stainless Steel disesuaikan) |
|---|---|---|---|
| Metode pemasangan: | Lubang Obeng | Selesai / Pelapisan: | Lapisan Oksida Hitam |
| Seri: | Seri inci | Bentuk Rol: | Diameter Luar Silinder |
| Elemen Bergulir: | Needle Roller - Pelengkap Penuh | Tipe Pejantan: | CF - Pejantan Standar |
| Penyegelan: | Disegel / Dibuka / Disesuaikan | Lokasi Lubang Pelumasan: | Sisi tiang |
| Cahaya Tinggi: | bantalan rol track stud baja,slot obeng bantalan rol track stud,pengikut cam bermahkota oksida hitam |
||

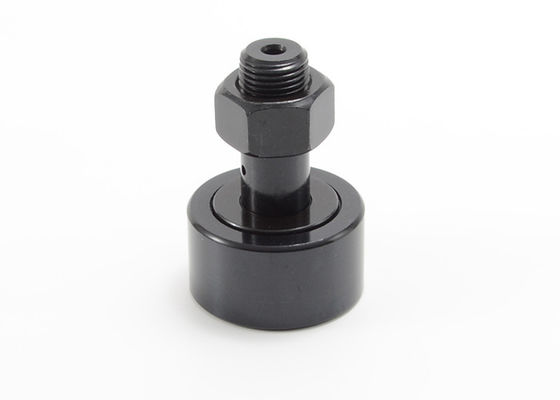

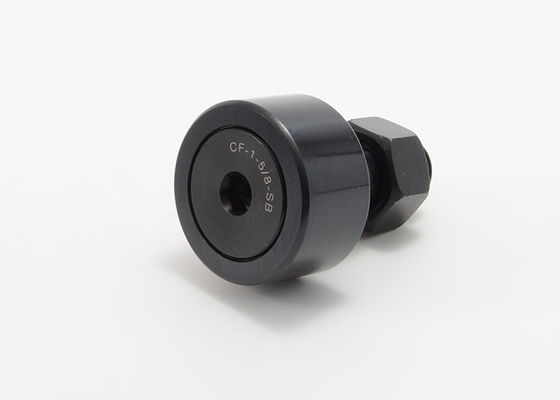

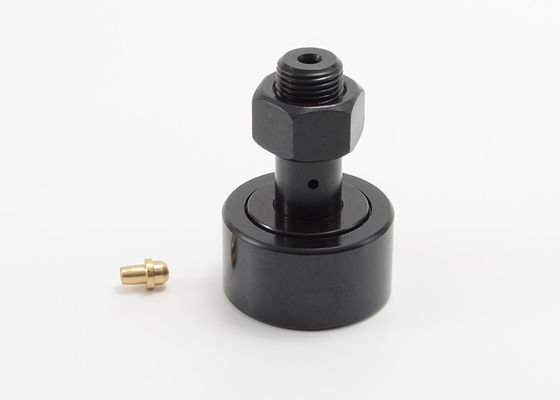

Silinder Inch Cam Pengikut Obeng Slot dengan Bantalan Baja CF 1/2 CF-2 CF-1 3/8-S
Dirancang untuk memaksimalkan gerakan pilihan dengan konstruksi yang kaku dan konsisten.Pengikut cam menampilkan profil gesekan sederhana dan rendah untuk mengubah gerakan berputar menjadi gerakan linier dengan persyaratan pelumasan rendah.
Kami menawarkan rangkaian lengkap pengikut cam tipe pejantan untuk aplikasi industri.Bantalan ini tersedia dalam baja, baja tahan karat, dan dengan busing internal plastik yang direkayasa.Kami berspesialisasi dalam pengikut kamera yang direkayasa agar sesuai dengan aplikasi tertentu.
Obeng Slot Stud Type Needle Roller Bearing direkomendasikan di mana beban kerja dan beban kejut sedang.Daya dukung Seri Tipe Pejantan dibatasi oleh pejantan berukuran sedang.Diproduksi dari Baja Berkualitas Bantalan Paduan Tinggi.Pengikut cam tujuan umum yang paling umum digunakan dan tersedia dalam versi tersegel.
Seri Inch Stud Type Cam Follower Slot ObengSpesifikasi:
| Buka segel | Tertutup | Rol Dia.(RD) | Lebar Rol (W) | Pejantan Dia.(SD) | Pejantan L'GTH.(SL) | Min.THR'D L'GTH (TL) | Baik THR'DS. |
| CF-1/2-N | CF-1/2-NS | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 |
| CF-1/2 | CF-1/2-S | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CF-9/16 | CF-9/16-S | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CF-5/8-N | CF-5/8-NS | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 |
| CF-5/8 | CF-5/8-S | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CF-11/16 | CF-11/16-S | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CF-3/4 | CF-3/4-S | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CF-7/8 | CF-7/8-S | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CF-1 | CF-1-S | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CF-1 1/8 | CF-1 1/8-S | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CF-1 1/4 | CF-1 1/4-S | 1.250 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CF-1 3/8 | CF-1 3/8-S | 1.375 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CF-1 1/2 | CF-1 1/2-S | 1.500 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CF-1 5/8 | CF-1 5/8-S | 1.625 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CF-1 3/4 | CF-1 3/4-S | 1.750 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CF-1 7/8 | CF-1 7/8-S | 1.875 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CF-2 | CF-2-S | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CF-2 1/4 | CF-2 1/4-S | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CF-2 1/2 | CF-2 1/2-S | 2.500 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CF-2 3/4 | CF-2 3/4-S | 2.750 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CF-3 | CF-3-S | 3.000 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CF-3 1/4 | CF-3 1/4-S | 3.250 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CF-3 1/2 | CF-3 1/2-S | 3.500 | 2.000 | 1.375 | 2 3/4 | 1 3/8 | 1 3/8-12 |
| CF-4 | CF-4-S | 4.000 | 2.250 | 1.500 | 3 1/2 | 1 1/2 | 1 1/2-12 |
| CF-5-S | 5.000 | 2.750 | 2.000 | 5 1/16 | 2 9/16 | 2-12 | |
| CF-6-S | 6.000 | 3.250 | 2.500 | 6 | 3 | 2 1/2-12 | |
| CF-7-S | 7.000 | 3.750 | 3.000 | 7 11/16 | 4 1/8 | 3-12 | |
| CF-8-S | 8.000 | 4.250 | 3.250 | 8 1/2 | 4 1/4 | 3 1/4-4 | |
| CF-9-S | 9.000 | 4.750 | 3.750 | 9 1/2 | 4 3/4 | 3 1/2-4 | |
| CF-10-S | 10.000 | 5.250 | 4.250 | 10 | 4 3/4 | 3 1/2-4 |
| ASdisegel | Tertutup | Lubang Minyak | LUB.UKURAN PAS (F) | MerekomendasikanTorsi Penjepit (LBS.) | Peringkat Beban Dasar | ||
| Pusat Lubang (HC) | Lubang Dia.(HD) | Maks.Kapasitas Statis (LBS.) | Maks.Din.Kapasitas (LBS.) | ||||
| CF-1/2-N | CF-1/2-NS | - | - | 1/8 | 15 | 720 | 620 |
| CF-1/2 | CF-1/2-S | - | - | 1/8 | 15 | 790 | 680 |
| CF-9/16 | CF-9/16-S | - | - | 1/8 | 15 | 790 | 680 |
| CF-5/8-N | CF-5/8-NS | - | - | 1/8 | 35 | 1085 | 930 |
| CF-5/8 | CF-5/8-S | - | - | 1/8 | 35 | 1215 | 955 |
| CF-11/16 | CF-11/16-S | - | - | 1/8 | 35 | 1215 | 955 |
| CF-3/4 | CF-3/4-S | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8 | CF-7/8-S | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CF-1 | CF-1-S | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8 | CF-1 1/8-S | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/4 | CF-1 1/4-S | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8 | CF-1 3/8-S | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CF-1 1/2 | CF-1 1/2-S | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8 | CF-1 5/8-S | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CF-1 3/4 | CF-1 3/4-S | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8 | CF-1 7/8-S | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CF-2 | CF-2-S | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4 | CF-2 1/4-S | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/2 | CF-2 1/2-S | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4 | CF-2 3/4-S | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CF-3 | CF-3-S | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4 | CF-3 1/4-S | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/2 | CF-3 1/2-S | 16/11 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
| CF-4 | CF-4-S | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
| CF-5-S | 7/8 | 3/16 | 1/4 | 5000 | 67950 | 46575 | |
| CF-6-S | 1 | 3/16 | 1/4 | 5000 | 80450 | 60000 | |
| CF-7-S | 1 1/4 | 3/16 | 1/4 | 5000 | 106930 | 75380 | |
| CF-8-S | - | - | 1/4 | 5000 | 144100 | 92200 | |
| CF-9-S | - | - | 1/4 | 5000 | 183430 | 113260 | |
| CF-10-S | - | - | 1/4 | 5000 | 215565 | 131545 | |
