Detail produk:
|
| Nama: | Metric Machined Grounded Inner Ring untuk Bantalan Jarum | Bahan: | Baja Berkualitas Bantalan Paduan Tinggi |
|---|---|---|---|
| Bagian No.: | IR35X40X20, IR45X50X40 | Permukaan Selesai: | Mesin Netral |
| Ukuran (Metrik atau Inci): | Metrik | Tipe Konstruksi Dasar: | Cincin bagian dalam, mesin presisi |
| Alur Pelumasan: | Cincin bagian dalam tersedia dengan dan tanpa lubang pelumasan. | Pengolahan: | Mesin |
| Cahaya Tinggi: | 100cr6 Bearing Inner Ring,Chromium needle bearing inner race,MI 10 N needle bearing inner race |
||

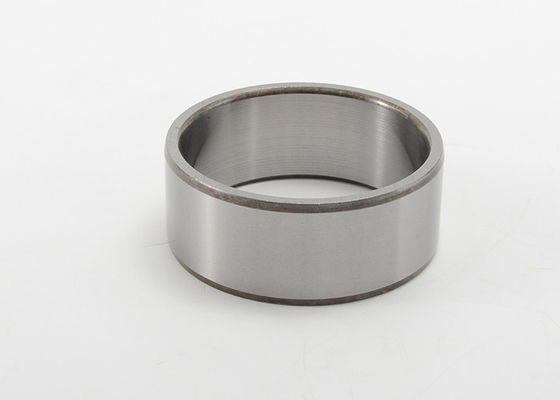

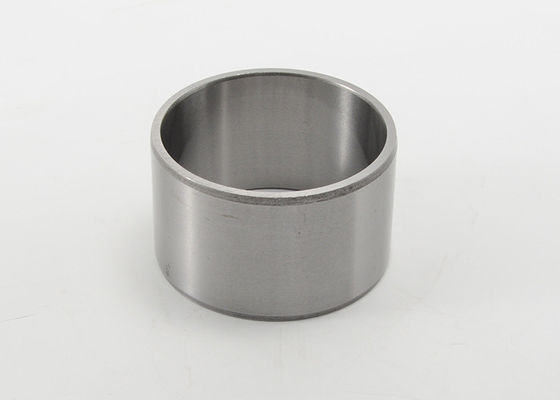

Metric Machined Grounded Inner Ring untuk Bantalan Jarum IR35X40X20 IR45X50X40
Cincin bagian dalam, mesin presisi

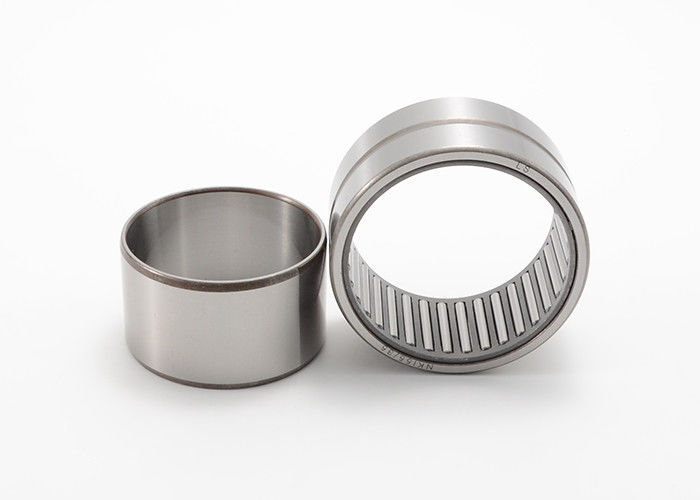

Cincin bagian dalam IR memiliki lintasan mesin yang presisi.Talang pada permukaan ujung memungkinkan penyisipan yang mudah ke dalam bantalan dan mencegah kerusakan pada bibir segel bantalan.Cincin bagian dalam tersedia dengan dan tanpa lubang pelumasan.
Metric Machined Grounded Inner Ring untuk Bantalan Jarum Spesifikasi:
|
Batang Diameter |
Bantalan Penamaan |
Massa Kira-kira |
Dimensi Batas | ||
| d | F | B | |||
| mm | g | mm | |||
| 35 | IR35X40X12.5 | 27.2 | 35 | 40 | 12.5 |
| IR35X40X15 | 35 | 40 | 15 | ||
| 35 | IR35X40X15.5 | 35 | 40 | 15.5 | |
| IR35X40X16.5 | 37.4 | 35 | 40 | 16.5 | |
| IR35X40X17 | 38.3 | 35 | 40 | 17 | |
| IR35X40X20 | 44.4 | 35 | 40 | 20 | |
| IR35X40X20.5 | 46.1 | 35 | 40 | 20.5 | |
| IR35X40X21 | 35 | 40 | 21 | ||
| IR35X40X25 | 35 | 40 | 25 | ||
| IR35X40X25.5 | 35 | 40 | 25.5 | ||
| IR35X40X30 | 67.9 | 35 | 40 | 30 | |
| IR35X40X30.5 | 35 | 40 | 30.5 | ||
| IR35X40X34 | 35 | 40 | 34 | ||
| IR35X40X40 | 35 | 40 | 40 | ||
| IR35X42X20 | 63.9 | 35 | 42 | 20 | |
| IR35X42X20.5 | 66 | 35 | 42 | 20.5 | |
| IR35X42X21 | 67.7 | 35 | 42 | 21 | |
| IR35X42X23 | 74 | 35 | 42 | 23 | |
| IR35X42X36 | 117 | 35 | 42 | 36 | |
| IR35X42X37 | 35 | 42 | 37 | ||
| IR35X43X22 | 82 | 35 | 43 | 22 | |
| IR35X65X28 | 35 | 65 | 28 | ||
| 36 | IR36.2X50X25.5 | 36 | 50 | 25.5 | |
| 38 | IR38X43X20 | 48.1 | 38 | 43 | 20 |
| IR38X43X30 | 73.6 | 38 | 43 | 30 | |
| IR38X45X46 | 38 | 45 | 46 | ||
| 40 | IR40X45X12 | 40 | 45 | 12 | |
| IR40X45X16 | 40 | 45 | 16 | ||
| IR40X45X16.5 | 41.4 | 40 | 45 | 16.5 | |
| IR40X45X17 | 42.5 | 40 | 45 | 17 | |
| IR40X45X20 | 50,5 | 40 | 45 | 20 | |
| IR40X45X20.5 | 52.5 | 40 | 45 | 20.5 | |
| IR40X45X22.5 | 40 | 45 | 22.5 | ||
| IR40X45X25 | 40 | 45 | 25 | ||
| IR40X45X25.5 | 40 | 45 | 25.5 | ||
| IR40X45X30 | 77.1 | 40 | 45 | 30 | |
| IR40X45X30.5 | 40 | 45 | 30.5 | ||
| IR40X45X34 | 40 | 45 | 34 | ||
| IR40X45X40 | 40 | 45 | 40 | ||
| IR40X45X40.5 | 40 | 45 | 40.5 | ||
| IR40X45X40ASI | 40 | 45 | 40 | ||
| 40 | IR40X48X22 | 40 | 48 | 22 | |
| IR40X48X23 | 40 | 48 | 23 | ||
| IR40X48X30 | 40 | 48 | 30 | ||
| IR40X48X40 | 40 | 48 | 40 | ||
| IR40X49.5X40 | 40 | 49.5 | 40 | ||
| IR40X50X20.5 | 40 | 50 | 20.5 | ||
| IR40X50X20 | 40 | 50 | 20 | ||
| IR40X50X22 | 40 | 50 | 22 | ||
| IR40X50X35 | 40 | 50 | 35 | ||
| IR40X55X17 | 40 | 55 | 17 | ||
| 42 | IR42X47X20 | 42 | 47 | 20 | |
| IR42X47X30 | 42 | 47 | 30 | ||
| 44 | IR44X52X32 | 44 | 52 | 32 | |
| 45 | IR45X50X14 | 45 | 50 | 14 | |
| IR45X50X15.5 | 45 | 50 | 15.5 | ||
| IR45X50X20 | 45 | 50 | 20 | ||
| IR45X50X20.5 | 45 | 50 | 20.5 | ||
| IR45X50X25 | 45 | 50 | 25 | ||
| IR45X50X25.5 | 45 | 50 | 25.5 | ||
| IR45X50X26 | 45 | 50 | 26 | ||
| IR45X50X30.5 | 45 | 50 | 30.5 | ||
| IR45X50X35 | 45 | 50 | 35 | ||
| IR45X50X40 | 45 | 50 | 40 | ||
| IR45X50X40.5 | 45 | 50 | 40.5 | ||
| IR45X50X45.5 | 45 | 50 | 45.5 | ||
| IR45X52X22 | 45 | 52 | 22 | ||
| IR45X52X23 | 45 | 52 | 23 | ||
| IR45X52X40 | 45 | 52 | 40 | ||
| IR45X55X20 | 45 | 55 | 20 | ||
| IR45X55X22 | 45 | 55 | 22 | ||
| IR45X55X40 | 45 | 55 | 40 | ||
| 45.2 | IR45.2X58X36 | 42.5 | 58 | 36 | |
| 47 | IR47X60X35 | 47 | 60 | 35 | |
| 48 | IR48X55X20 | 48 | 55 | 20 | |
| 50 | IR50X55X17 | 50 | 55 | 17 | |
| IR50X55X20 | 50 | 55 | 20 | ||
| IR50X55X20.5 | 50 | 55 | 20.5 | ||
| IR50X55X25 | 50 | 55 | 25 | ||
| IR50X55X25.5 | 50 | 55 | 25.5 |
