Detail produk:
|
| Nama: | Kopling Cam Seri MZ-G | Bahan: | Baja Berkualitas Bantalan Paduan Tinggi |
|---|---|---|---|
| Lubang Kunci: | Ya | Permukaan Selesai: | Tanpa Pengobatan |
| Rentang Ukuran: | Ukuran lubang dari 15 mm hingga 70 mm | Fitur: | Balapan luar menjadi ground finish |
| pra-dilumasi: | Ya | pemeliharaan pelumasan Diperlukan: | Tidak |
| Cahaya Tinggi: | Bantalan Kopling Satu Arah MZ15G,sepeda motor kopling sprag freewheel,penyelesaian tanah sepeda motor kopling sprag |
||

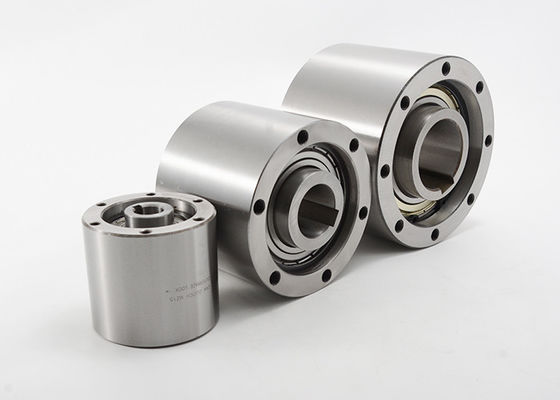

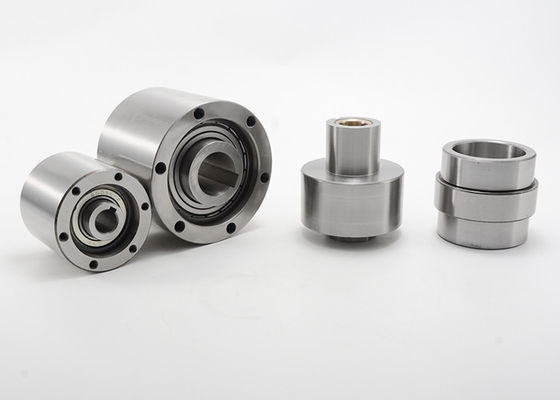

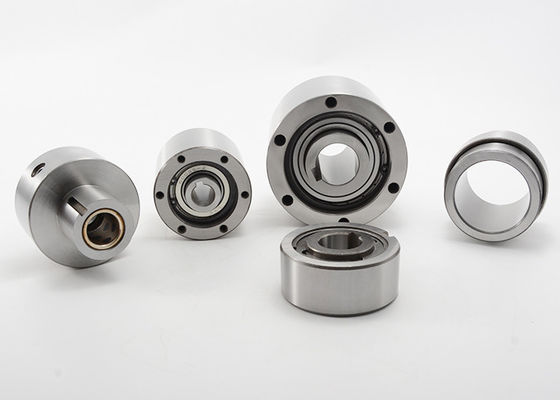

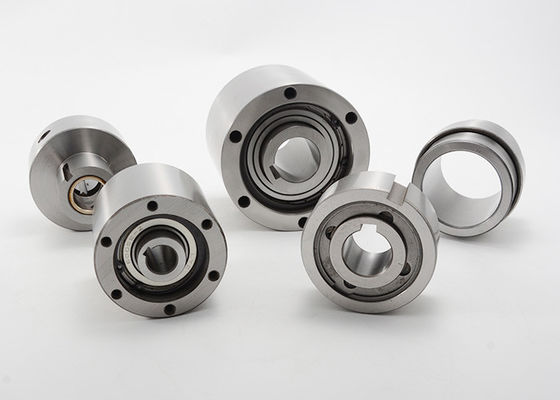

MZ15G Cam Clutch One Way Sprag Freewheel Clutch Bearing Outer Race Ground Finish
Kopling Seri MZ telah dilumasi sebelumnya dengan gemuk dan siap dipasang serta tidak memerlukan perawatan pelumasan.Seri ini sangat ideal untuk aplikasi umum.Balapan luar Seri MZ-G selesai dengan mesin.
Spesifikasi Kopling Cam Seri MZ-G:
| Jenis | Ukuran bor | Lubang Kunci | Dimensi (mm) | ||||||
| d | A (Lebar Keseluruhan) | C (Lebar Lomba Keseluruhan) | B (Diameter Keseluruhan) | F (OD Balap Dalam) | E (ID Balapan Luar) | D (Diameter Lingkaran Lapangan) | s (Kedalaman Benang) | ||
| MZ15G | 15 | 5x2.3 | 55 | 53 | 68 | 25 | 47 | 58 | 10 |
| MZ17G | 17 | 5x2.3 | 63 | 61 | 75 | 28 | 52 | 64 | 10 |
| MZ20G | 20 | 5x2.3 | 64 | 62 | 80 | 30 | 55 | 68 | 12 |
| MZ30G-22 | 22 | 8x3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
| MZ30G-25 | 25 | 8x3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
| MZ30G | 30 | 10x3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
| MZ35G | 35 | 10x3.3 | 78 | 76 | 110 | 50 | 80 | 95 | 16 |
| MZ45G-40 | 40 | 12x3.3 | 87 | 85 | 125 | 60 | 95 | 110 | 16 |
| MZ45G | 45 | 12x3.3 | 87 | 85 | 125 | 60 | 95 | 110 | 16 |
| MZ60G-50 | 50 | 14x3.8 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
| MZ60G-55 | 55 | 16x4.3 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
| MZ60G | 60 | 18x4.4 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
| MZ70G-65 | 65 | 18x4.4 | 105 | 103 | 175 | 95 | 145 | 162 | 16 |
| MZ70G | 70 | 20x4.9 | 105 | 103 | 175 | 95 | 145 | 162 | 16 |
| Jenis | Ukuran bor | Maks.Torsi (Nm) | Tarik Torsi (Nm) | Maks.Kecepatan Overrun (rpm) | Maks.Pengindeksan (cpm) | HM no.dari Tapped Holes x Ukuran x Pitch | Berat Bersih (kg) | |
| d | Ras batin | Ras Luar | ||||||
| MZ15G | 15 | 186 | 0,20 | 1800 | 900 | 150 | 6 x M5 x P0.8 | 1.3 |
| MZ17G | 17 | 215 | 0,20 | 1700 | 800 | 150 | 6 x M5 x P0.8 | 1.7 |
| MZ20G | 20 | 323 | 0,29 | 1600 | 700 | 150 | 6 x M6 x P1.0 | 1.9 |
| MZ30G-22 | 22 | 735 | 0,39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
| MZ30G-25 | 25 | 735 | 0,39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
| MZ30G | 30 | 735 | 0,39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
| MZ35G | 35 | 1080 | 0,49 | 1400 | 300 | 150 | 6 x M8 x P1.25 | 4.4 |
| MZ45G-40 | 40 | 1620 | 0,69 | 1400 | 300 | 150 | 8 x M8 x P1.25 | 6.2 |
| MZ45G | 45 | 1620 | 0,69 | 1400 | 300 | 150 | 8 x M8 x P1.25 | 6.2 |
| MZ60G-50 | 50 | 2110 | 0,98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
| MZ60G-55 | 55 | 2110 | 0,98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
| MZ60G | 60 | 2110 | 0,98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
| MZ70G-65 | 65 | 3040 | 1.27 | 1100 | 250 | 150 | 8 x M8 x P1.25 | 13.1 |
| MZ70G | 70 | 3040 | 1.27 | 1100 | 250 | 150 | 8 x M8 x P1.25 | 13.1 |
