Detail produk:
|
| Nama: | Bantalan Rol Silinder Baris Tunggal Sangkar Kuningan | Kemampuan perpindahan aksial: | Di kedua arah |
|---|---|---|---|
| Bagian bantalan: | Bantalan lengkap | Tipe bor: | Berbentuk silinder |
| Kurungan: | Kuningan Mesin | Jumlah flensa, cincin bagian dalam: | 0 |
| Jumlah flensa, cincin luar: | 2 | Jumlah baris: | 1 |
| Jarak internal radial: | CN | Fitur pelumasan ulang: | Tanpa |
| Cahaya Tinggi: | kandang kuningan Bantalan Rol Presisi,Bantalan Rol Presisi Silinder,bantalan rol silinder baris tunggal |
||

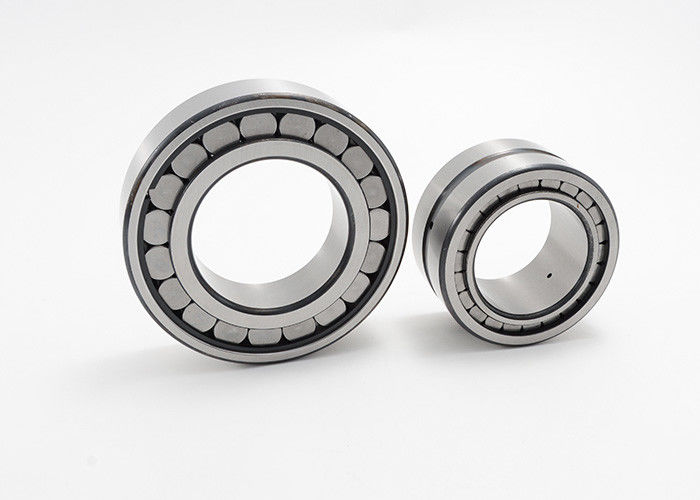

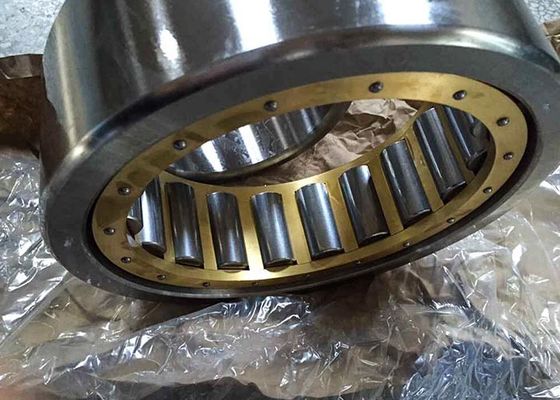

Kuningan Kandang Bantalan Rol Silinder Baris Tunggal Cincin Dalam Yang Dapat Dilepas NU1018M1
Bantalan rol silinder baris tunggal dirancang untuk mengakomodasi beban radial tinggi yang dikombinasikan dengan kecepatan tinggi.Memiliki dua flensa integral pada cincin luar dan tidak ada flensa pada cincin bagian dalam, bantalan desain NU dapat mengakomodasi perpindahan aksial di kedua arah.Fitur penting adalah desain yang dapat dipisahkan, yang memfasilitasi pemasangan dan memungkinkan komponen bantalan dipertukarkan.
Penyegelan:
Bantalan rol silinder disediakan dalam desain terbuka.
Suhu Operasional:
Bantalan rol silinder lengkap cocok untuk suhu pengoperasian dari –30 °C hingga +120 °C.
MOUETTE menawarkan lebih banyak bantalan rol silinder meja pertukaran.
Jika ada kebutuhan, jangan ragu untuk menghubungi.
Brass Cage Cylindrical Roller Bearings Single Row Removable Inner Ring Tipe NU Spesifikasi:
| Kode Bantalan | Ukuran | Massa | Peringkat Beban Dasar | Membatasi Kecepatan | ||||||
| d | D | B | rsmin | D1 | Fw, eh | dinamis | statis | |||
| Kr | Kor | |||||||||
| mm | kg | KN | rpm | |||||||
| NU1005 | 25 | 47 | 12 | 0,6 | 38.8 | 30.5 | 0,083 | 13.4 | 12 | 28000 |
| NU1006 | 30 | 55 | 13 | 1 | 45.6 | 36.5 | 0,129 | 16.6 | 16 | 2400 |
| NU1007M1 | 35 | 62 | 14 | 1 | 54.5 | 42 | 0,181 | 24.5 | 26 | 20000 |
| NU1008M1 | 40 | 68 | 15 | 1 | 57.6 | 47 | 0,23 | 29 | 32 | 19000 |
| NU1009M1 | 45 | 75 | 16 | 1 | 65.3 | 52.5 | 0,28 | 34.5 | 39 | 16000 |
| NU1010M1 | 50 | 90 | 20 | 1.1 | 70 | 57.5 | 0,268 | 36 | 41.5 | 15000 |
| NU1011M1 | 55 | 90 | 18 | 1.1 | 79 | 64.5 | 0,45 | 41.5 | 50 | 14000 |
| NU1012M1 | 60 | 95 | 18 | 1.1 | 81.6 | 69.2 | 0,478 | 44 | 55 | 13000 |
| NU1013M1 | 65 | 100 | 18 | 1.1 | 88.5 | 74 | 0,512 | 45 | 58.5 | 12000 |
| NU1014M1 | 70 | 110 | 20 | 1.1 | 97.5 | 79.5 | 0,706 | 64 | 81.5 | 11000 |
| NU1015M1 | 75 | 115 | 20 | 1.1 | 101 | 85 | 0,75 | 65.5 | 85 | 10.000 |
| NU1016M1 | 80 | 125 | 22 | 1.1 | 109 | 91.5 | 0,99 | 76.5 | 98 | 9500 |
| NU1017M1 | 85 | 130 | 22 | 1.1 | 114 | 96.5 | 1.05 | 78 | 104 | 9000 |
| NU1018M1 | 90 | 140 | 24 | 1.5 | 122 | 103 | 1.31 | 93 | 125 | 8500 |
| NU1019M1 | 95 | 145 | 24 | 1.5 | 127 | 108 | 1.42 | 96.5 | 129 | 8000 |
| NU1020M1 | 100 | 150 | 24 | 1.5 | 132 | 113 | 1.48 | 98 | 134 | 7500 |
| NU1021M1 | 105 | 160 | 26 | 2 | 140 | 119.5 | 1.84 | 112 | 153 | 7000 |
| NU1022M1 | 110 | 170 | 28 | 2 | 149 | 125 | 2.31 | 140 | 190 | 7000 |
| NU1024M1 | 120 | 180 | 28 | 2 | 159 | 135 | 2.47 | 150 | 208 | 6300 |
| NU1026M1 | 130 | 200 | 33 | 2 | 175 | 148 | 3.8 | 180 | 250 | 5600 |
| NU1028M1 | 140 | 210 | 33 | 2 | 185 | 158 | 4.09 | 183 | 265 | 5300 |
| NU1030M1 | 150 | 225 | 35 | 2.1 | 198 | 169.5 | 4.93 | 208 | 310 | 5000 |
| NU1032M1 | 160 | 240 | 38 | 2.1 | 211 | 180 | 5.92 | 245 | 355 | 4800 |
| NU1034M1 | 170 | 260 | 42 | 2.1 | 227 | 193 | 7.96 | 300 | 430 | 4500 |
| NU1036M1 | 180 | 280 | 46 | 2.1 | 244 | 205 | 10.5 | 360 | 520 | 4500 |
| NU1038M1 | 190 | 290 | 46 | 2.1 | 254 | 215 | 10.9 | 365 | 550 | 4300 |
| NU1040M1 | 200 | 310 | 51 | 2.1 | 269 | 229 | 14.1 | 400 | 600 | 3800 |
| NU1044M1 | 220 | 340 | 56 | 3 | 297 | 250 | 20.5 | 510 | 765 | 3200 |
| NU1048M1 | 240 | 360 | 56 | 3 | 317 | 270 | 20.4 | 540 | 850 | 3000 |
| NU1052M1 | 260 | 400 | 65 | 4 | 349 | 296 | 29.9 | 655 | 1020 | 2800 |
| NU1056M1 | 280 | 240 | 65 | 4 | 369 | 316 | 31.4 | 680 | 1100 | 2800 |
| NU1060M1 | 300 | 460 | 74 | 4 | 402 | 340 | 46.5 | 900 | 1430 | 2400 |
| NU1064M1 | 320 | 480 | 74 | 4 | 422 | 360 | 48.5 | 915 | 1500 | 2400 |
| NU1068M1 | 340 | 520 | 82 | 5 | 455 | 385 | 63 | 1120 | 1830 | 2200 |
| NU1072M1 | 360 | 540 | 82 | 5 | 475 | 405 | 66 | 1140 | 1900 | 2200 |
| NU1076M1 | 380 | 560 | 82 | 5 | 495 | 425 | 71 | 1180 | 2000 | 2000 |
| NU1080M1 | 400 | 600 | 90 | 5 | 527 | 450 | 89.8 | 1370 | 2320 | 1900 |
| NU1084M1 | 420 | 620 | 90 | 5 | 547 | 470 | 92.9 | 1400 | 2450 | 1800 |
| NU1088M1 | 440 | 650 | 94 | 6 | 574 | 493 | 104 | 1560 | 2750 | 1600 |
| NU1092M1 | 460 | 680 | 100 | 6 | 600 | 516 | 115 | 1660 | 3000 | 1600 |
| NU1096M1 | 480 | 700 | 100 | 6 | 620 | 536 | 134 | 1700 | 3100 | 1500 |
| NU10/500M1 | 500 | 720 | 100 | 6 | 640 | 556 | 133 | 1760 | 3200 | 1500 |
| NU12/500M1 | 500 | 920 | 185 | 6 | 728 | 576 | 585 | 5280 | 8500 | 950 |
| NU10/530M1 | 530 | 780 | 112 | 6 | 692 | 593 | 190 | 2290 | 4050 | 1000 |
| NU20/530M1 | 530 | 780 | 145 | 6 | 704 | 591 | 255 | 3740 | 7350 | 1000 |
| NU10/560M1 | 560 | 820 | 115 | 6 | 726 | 625 | 210 | 2330 | 4250 | 1000 |
| NU20/560M1 | 560 | 820 | 150 | 6 | 726 | 625 | 290 | 3800 | 7650 | 1000 |
| NU12/560M1 | 560 | 1030 | 206 | 6 | 741 | 626 | 805 | 7210 | 11200 | 800 |
| NU10/600M1 | 600 | 870 | 118 | 6 | 779 | 667 | 245 | 2750 | 5100 | 900 |
| NU20/600M1 | 600 | 870 | 155 | 6 | 793 | 661 | 325 | 4180 | 8000 | 900 |
| NU12/600M1 | 600 | 1090 | 155 | 9.5 | 935 | 749 | 710 | 5610 | 9800 | 850 |
| NU10/630M1 | 630 | 920 | 128 | 7.5 | 837 | 702 | 285 | 3410 | 6200 | 1000 |
| NU20/630M1 | 630 | 920 | 170 | 7.5 | 832 | 699 | 400 | 4730 | 9500 | 850 |
| NU12/630M1 | 630 | 1150 | 230 | 12 | 1005 | 751 | 1100 | 8580 | 13700 | 700 |
| NU10/670M1 | 670 | 980 | 136 | 7.5 | 891 | 747 | 350 | 3740 | 6800 | 800 |
| NU20/670M1 | 670 | 980 | 180 | 7.5 | 890 | 746 | 480 | 5390 | 11000 | 800 |
| NU10/710M1 | 710 | 1030 | 140 | 7.5 | 939 | 778 | 415 | 4680 | 8500 | 7500 |
