Detail produk:
|
| Nama: | Bantalan Rol Jarum Balap Mesin | Jenis Bantalan Jarum: | Balap Mesin Dengan Cincin Dalam Opsional yang Dapat Dipisahkan |
|---|---|---|---|
| Jumlah Baris Rol: | baris tunggal | Tipe Segel: | Disegel, Bibir Karet di Kedua Sisi |
| Bahan Bantalan: | Bantalan Baja Berkualitas 52100 | Bahan Kandang: | Baja |
| Inci - Metrik: | Inci | Elemen Bergulir: | Jarum Presisi Terpandu Kandang |
| Rentang Suhu Operasi: | -20 hingga 250 °F | Disesuaikan: | Standar atau Disesuaikan tersedia |
| Cahaya Tinggi: | MR 22 SS bantalan rol terkurung,52100 bantalan rol terkurung,bantalan jarum kecepatan tinggi Machined Race |
||

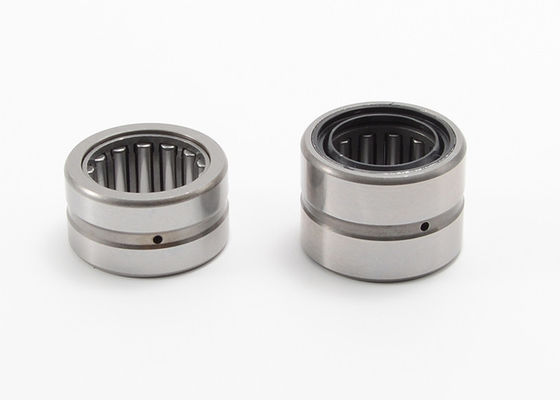

MR 22 SS Bantalan Rol Jarum Balap Mesin Dikurung Dan Disegel di Kedua Sisi
Bantalan jarum balap mesin dibuat dari baja berkualitas bantalan dan tersedia dengan beberapa konfigurasi segel.Bantalan jarum memiliki alur pelumasan dengan lubang radial pada cincin dalam dan luar untuk pelumasan ulang melalui rumahan atau poros.Tersedia desain khusus, pelumas, dan pencocokan diametris.
Fitur Utama:
Bantalan Rol Jarum Balap Mesin Dikurung, Disegel di Kedua Sisi Spesifikasi:
| Kode Bantalan | Lingkar dalam | B | D | W | W1 | H | R | ||
| +.0000 | Tol. | +.0000 | Tol. |
+.000 -0,005 |
+.000 -0,005 |
lubang dia. | Maks. | ||
| MR 10SS | MI 6 | .3750 | -.0004 | 1.1250 | -.0005 | 1.000 | 1.010 | 5/64 | .025 |
| MR 12 SS | MI 8 | .5000 | -.0004 | 1,2500 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 14SS | MI 10 | .6250 | -.0004 | 1,3750 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 16 SS | MI 12 | .7500 | -.0005 | 1,5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MI 13 | .8125 | -.0005 | 1,5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 | |
| MR 18SS | MI 14 | .8750 | -.0005 | 1,6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MI 15 | .9375 | -.0005 | 1,6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 | |
| MR 20SS | MI 16 | 1.0000 | -.0005 | 1,7500 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 22SS | MI 17 | 1,0625 | -.0005 | 1,8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MI 18 | 1.1250 | -.0005 | 1,8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 | |
| MR 24SS | MI 19 | 1.1875 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MI 20 | 1,2500 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MR 26SS | MI 21 | 1.3125 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MI 22 4S | 1,3750 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MR 28SS | MI 22 | 1,3750 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MI 23 | 1,4375 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MI 24 | 1,5000 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MR 30SS | MI 25 4S | 1,5625 | -.0005 | 2.4375 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32SS | MI 25 | 1,5625 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MI 26 | 1,6250 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MI 27 | 1,6875 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 | |
| MR 36SS | MI 28 | 1,7500 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 |
| MI 30 | 1,8750 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 | |
| MR 40SS | MI 31 | 1.9375 | -.0005 | 3,2500 | -.0006 | 1.750 | 1.760 | 1/8 | .080 |
| MI 32 | 2.0000 | -.0005 | 3,2500 | -.0006 | 1.750 | 1.760 | 1/8 | .080 | |
| MI 34 | 2.1250 | -.0005 | 3,2500 | -.0006 | 1.750 | 1.760 | 1/8 | .080 | |
| MR 44SS | MI 35 | 2.1875 | -.0006 | 3,5000 | -.0080 | 1.750 | 1.760 | 1/8 | .080 |
| MI 36 | 2.2500 | -.0006 | 3,5000 | -.0080 | 1.750 | 1.760 | 1/8 | .080 | |
| MR 48SS | MI 38 | 2.3750 | -.0006 | 3,7500 | -.0080 | 1.750 | 1.760 | 1/8 | .080 |
| MI 39 | 2.4375 | -.0006 | 3,7500 | -.0080 | 1.750 | 1.760 | 1/8 | .080 | |
| MI 40 | 2,5000 | -.0006 | 3,7500 | -.0080 | 1.750 | 1.760 | 1/8 | .080 | |
| MR 52SS | MI 42 | 2.6250 | -.0006 | 4,2500 | -.0080 | 1.750 | 1.760 | 3/16 | .080 |
| MI 44 | 2,7500 | -.0006 | 4,2500 | -.0080 | 1.750 | 1.760 | 3/16 | .080 | |
| MR 56SS | MI 46 | 2.8750 | -.0006 | 4,5000 | -.0080 | 2.000 | 2.010 | 3/16 | .080 |
| MI 47 | 2.9375 | -.0006 | 4,5000 | -.0080 | 2.000 | 2.010 | 3/16 | .080 | |
| MI 48 | 3.0000 | -.0006 | 4,5000 | -.0080 | 2.000 | 2.010 | 3/16 | .080 | |
| MR 60SS | MI 50 | 3.1250 | -.0006 | 4,7500 | -.0080 | 2.000 | 2.010 | 3/16 | .100 |
| MI 52 | 3,2500 | -.0006 | 4,7500 | -.0080 | 2.000 | 2.010 | 3/16 | .100 | |
| MR 64SS | MI 54 | 3.3750 | -.0080 | 5.0000 | -.0010 | 2.000 | 2.010 | 3/16 | .100 |
| MI 56 | 3,5000 | -.0080 | 5.0000 | -.0010 | 2.000 | 2.010 | 3/16 | .100 | |
| MR 68SS | MI 58 | 3.6250 | -.0080 | 5.2500 | -.0010 | 2.000 | 2.010 | 3/16 | .100 |
| MI 60 | 3,7500 | -.0080 | 5.2500 | -.0010 | 2.000 | 2.010 | 3/16 | .100 |
| Kode Bantalan | LINGKAR DALAM | SHAFT DIA. | Peringkat Beban Dasar | ||||
| ROTAT.BATANG | Tol. | POROS STAT | Tol. | STA.(lbs) | DYN.(lbs) | ||
| MR 10SS | MI 6 | .3755 | -.0005 | .3747 | -.0005 | 4300 | 4320 |
| MR 12 SS | MI 8 | .5005 | -.0005 | .4997 | -.0005 | 5400 | 4990 |
| MR 14SS | MI 10 | .6255 | -.0005 | .6247 | -.0005 | 6000 | 5280 |
| MR 16 SS | MI 12 | .7505 | -.0005 | .7490 | -.0005 | 7100 | 5840 |
| MI 13 | .8129 | -.0005 | .8121 | -.0005 | 7100 | 5840 | |
| MR 18SS | MI 14 | .8754 | -.0005 | .8746 | -.0005 | 12200 | 8720 |
| MI 15 | .9379 | -.0005 | .9371 | -.0005 | 12200 | 8720 | |
| MR 20SS | MI 16 | 1,0004 | -.0005 | .9996 | -.0005 | 13100 | 9020 |
| MR 22SS | MI 17 | 1.0630 | -.0005 | 1.0621 | -.0005 | 14700 | 9640 |
| MI 18 | 1.1255 | -.0005 | 1.1246 | -.0005 | 14700 | 9640 | |
| MR 24SS | MI 19 | 1.1880 | -.0005 | 1.1871 | -.0005 | 15500 | 10300 |
| MI 20 | 1.2505 | -.0005 | 1.2496 | -.0005 | 15500 | 10300 | |
| MR 26SS | MI 21 | 1.3130 | -.0005 | 1.3121 | -.0005 | 16400 | 10600 |
| MI 22 4S | 1.3755 | -.0005 | 1.3746 | -.0005 | 16400 | 10600 | |
| MR 28SS | MI 22 | 1.3755 | -.0005 | 1.3746 | -.0005 | 18100 | 11200 |
| MI 23 | 1.4380 | -.0005 | 1.4371 | -.0005 | 18100 | 11200 | |
| MI 24 | 1,5005 | -.0005 | 1,4996 | -.0005 | 18100 | 11200 | |
| MR 30SS | MI 25 4S | 1,5630 | -.0005 | 1,5621 | -.0005 | 19000 | 11400 |
| MR 32SS | MI 25 | 1,5630 | -.0005 | 1,5621 | -.0005 | 20700 | 12000 |
| MI 26 | 1.6255 | -.0005 | 1.6246 | -.0005 | 20700 | 12000 | |
| MI 27 | 1.6880 | -.0005 | 1.6871 | -.0005 | 20700 | 12000 | |
| MR 36SS | MI 28 | 1,7505 | -.0005 | 1,7496 | -.0005 | 39100 | 22400 |
| MI 30 | 1,8755 | -.0005 | 1,8746 | -.0005 | 39100 | 22400 | |
| MR 40SS | MI 31 | 1.9380 | -.0005 | 1.9371 | -.0005 | 42900 | 23400 |
| MI 32 | 2.0005 | -.0005 | 1,9996 | -.0005 | 42900 | 23400 | |
| MI 34 | 2.1258 | -.0005 | 2.1247 | -.0005 | 42900 | 23400 | |
| MR 44SS | MI 35 | 2.1883 | -.0080 | 2.1872 | -.0080 | 46700 | 24500 |
| MI 36 | 2.2508 | -.0080 | 2.2497 | -.0080 | 46700 | 24500 | |
| MR 48SS | MI 38 | 2.3758 | -.0080 | 2.3747 | -.0080 | 52300 | 26100 |
| MI 39 | 2.4383 | -.0080 | 2.4372 | -.0080 | 52300 | 26100 | |
| MI 40 | 2.5008 | -.0080 | 2.4997 | -.0080 | 52300 | 26100 | |
| MR 52SS | MI 42 | 2.6258 | -.0080 | 2.6247 | -.0080 | 54300 | 25100 |
| MI 44 | 2.7508 | -.0080 | 2.7497 | -.0080 | 54300 | 25100 | |
| MR 56SS | MI 46 | 2.8758 | -.0080 | 2.8747 | -.0080 | 71600 | 31300 |
| MI 47 | 2.9383 | -.0080 | 2.9372 | -.0080 | 71600 | 31300 | |
| MI 48 | 3.0008 | -.0080 | 2.9997 | -.0080 | 71600 | 31300 | |
| MR 60SS | MI 50 | 3.1260 | -.0080 | 3.1246 | -.0080 | 74700 | 31600 |
| MI 52 | 3.2510 | -.0080 | 3.2496 | -.0080 | 74700 | 31600 | |
| MR 64SS | MI 54 | 3.3758 | -.0010 | 3.3746 | -.0010 | 80400 | 32800 |
| MI 56 | 3.5008 | -.0010 | 3.4996 | -.0010 | 80400 | 32800 | |
| MR 68SS | MI 58 | 3.6258 | -.0010 | 3.6246 | -.0010 | 86200 | 34000 |
| MI 60 | 3.7508 | -.0010 | 3.7496 | -.0010 | 86200 | 34000 | |
