Detail produk:
|
| Nama: | Bantalan Rol Jarum Tugas Berat Radial | Jenis Bantalan Jarum: | Bantalan Rol Jarum Balap Mesin tanpa Cincin Bagian Dalam |
|---|---|---|---|
| Bahan Bantalan: | 52100 Bantalan Baja | Lampiran: | Terbuka, Tanpa Segel |
| Retainer (Kandang): | Ya, Dengan kandang | Jumlah Baris Rol: | baris tunggal |
| Elemen Bergulir: | Rol Jarum Presisi Terpandu Kandang | Jenis Lubang Pelumasan: | Alur & Lubang Pelumasan Annular |
| Fitur lainnya: | 2 Rib Outer Ring | 2 Rib Lingkar Luar | Steel Cage | Kandang Baja | H | Disesuaikan: | Standar atau Disesuaikan tersedia |
| Cahaya Tinggi: | 52100 bantalan jarum tugas berat,bantalan rol silinder radial baris tunggal,bantalan rol silinder radial MR 22 N |
||

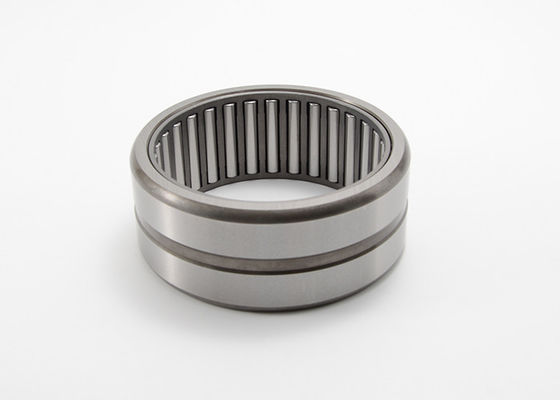

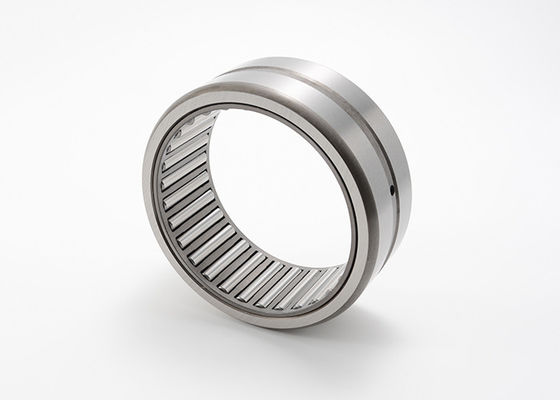

Bantalan Rol Jarum Tugas Berat Radial Tanpa Cincin Bagian Dalam Lebar Sempit MR 22 N
Rakitan bantalan yang tidak terpasang terdiri dari mesin presisi yang dikeraskan makan malam dan jalur luar dengan elemen gulungan jarum pelengkap atau terpisah (kandang).Bergantung pada bisa di darat atau naik roller dan tersedia dengan beberapa opsi segel.Bantalan jarum pacu mesin memberikan solusi anti gesekan saat mendukung poros berputar dengan beban radial.
Bantalan Rol Jarum Tugas Berat Radial Tanpa Cincin Bagian Dalam Lebar Sempit Seri MR Detail:
|
Kode Bantalan |
Lingkar dalam |
B | D | W | W1 | H | R | ||
| +.0000 | Tol. | +.0000 | Tol. |
+.000 -0,005 |
+.000 -0,005 |
lubang dia. | Maks. | ||
| MR 10 N | MI 6 N | .3750 | -.0004 | 1.1250 | -.0005 | .750 | .760 | 5/64 | .025 |
| MR 10 N | MI 7 N | .4375 | -.0004 | 1.1250 | -.0005 | .750 | .760 | 5/64 | .025 |
| MR 10 | MI 6 | .3750 | -.0004 | 1.1250 | -.0005 | 1.000 | 1.010 | 5/64 | .025 |
| MR 12 N | MI 8 N | .5000 | -.0004 | 1,2500 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 12 N | MI 9 N | .5625 | -.0004 | 1,2500 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 12 | MI 8 | .5000 | -.0004 | 1,2500 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 14 N | MI 10 N | .6250 | -.0004 | 1,3750 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 14 N | MI 11 N | .6875 | -.0004 | 1.3750 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 14 | MI 10 | .6250 | -.0004 | 1.3750 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 16 N | MI 12 N | .7500 | -.0004 | 1,5000 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 16 N | MI 13 N | .8125 | -.0004 | 1,5000 | -.0005 | .750 | .760 | 5/64 | .040 |
| MR 16 | MI 12 | .7500 | -.0004 | 1,5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 16 | MI 13 | .8125 | -.0004 | 1,5000 | -.0005 | 1.000 | 1.010 | 5/64 | .040 |
| MR 18 N | MI 14 N | .8750 | -.0005 | 1,6250 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 18 N | MI 15 N | .9375 | -.0005 | 1,6250 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 18 | MI 14 | .8750 | -.0005 | 1,6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 18 | MI 15 | .9375 | -.0005 | 1,6250 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 20 N | MI 16 N | 1.0000 | -.0005 | 1,7500 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 20 | MI 16 | 1.0000 | -.0005 | 1,7500 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 22 N | MI 18 N | 1.1250 | -.0005 | 1,8750 | -.0005 | 1.000 | 1.010 | 3/32 | .040 |
| MR 22 | MI 17 | 1,0625 | -.0005 | 1,8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 22 | MI 18 | 1.1250 | -.0005 | 1,8750 | -.0005 | 1.250 | 1.260 | 3/32 | .040 |
| MR 24 N | MI 20N | 1,2500 | -.0005 | 2.0625 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 24 | MI 19 | 1.1875 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 24 | MI 20 | 1,2500 | -.0005 | 2.0625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 26 N | MI 21 N | 1.3125 | -.0005 | 2.1875 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 26 | MI 21 | 1.3125 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 26 | MI 22 4S | 1.3750 | -.0005 | 2.1875 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 N | MI 24 N | 1,5000 | -.0005 | 2.3125 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 28 | MI 22 | 1.3750 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 | MI 23 | 1,4375 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 28 | MI 24 | 1,5000 | -.0005 | 2.3125 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 30 | MI 25 4S | 1,5625 | -.0005 | 2.4375 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 31 | MI 26 2S | 1,6250 | -.0005 | 2,5000 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 N | MI 26 N | 1,6250 | -.0005 | 2.5625 | -.0006 | 1.000 | 1.010 | 3/32 | .060 |
| MR 32 | MI 25 | 1,5625 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 | MI 26 | 1,6250 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 32 | MI 27 | 1,6875 | -.0005 | 2.5625 | -.0006 | 1.250 | 1.260 | 3/32 | .060 |
| MR 36 N | MI 28 N | 1,7500 | -.0005 | 3.0000 | -.0006 | 1.500 | 1.510 | 1/8 | .060 |
| MR 36 | MI 28 | 1,7500 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 |
| MR 36 | MI 30 | 1,8750 | -.0005 | 3.0000 | -.0006 | 1.750 | 1.760 | 1/8 | .060 |
| MR 40 N | MI 32 N | 2.0000 | -.0005 | 3,2500 | -.0008 | 1.500 | 1.510 | 1/8 | .080 |
| MR 40 | MI 31 | 1.9375 | -.0005 | 3,2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
| MR 40 | MI 32 | 2.0000 | -.0005 | 3,2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
| MR 40 | MI 34 | 2.1250 | -.0005 | 3,2500 | -.0008 | 1.750 | 1.760 | 1/8 | .080 |
|
Kode Bantalan |
LINGKAR DALAM |
SHAFT DIA. | Peringkat Beban Dasar | ||||
| ROTAT.BATANG | Tol. | POROS STAT | Tol. | STA. | DYN. | ||
| MR 10 N | MI 6 N | .3755 | -.0005 | .3747 | -.0005 | 4300 | 4320 |
| MR 10 N | MI 7 N | .4380 | -.0005 | .4372 | -.0005 | 4300 | 4320 |
| MR 10 | MI 6 | .3755 | -.0005 | .3747 | -.0005 | 6500 | 5930 |
| MR12 N | MI 8 N | .5005 | -.0005 | .4997 | -.0005 | 5400 | 4990 |
| MR 12 N | MI 9 N | .5630 | -.0005 | .5623 | -.0005 | 5400 | 4990 |
| MR 12 | MI 8 | .5005 | -.0005 | .4997 | -.0005 | 8100 | 6830 |
| MR 14 N | MI 10 N | .6255 | -.0005 | .6247 | -.0005 | 6000 | 5280 |
| MR 14 N | MI 11 N | .6880 | -.0005 | .6872 | -.0005 | 6000 | 5280 |
| MR 14 | MI 10 | .6255 | -.0005 | .6247 | -.0005 | 9000 | 7240 |
| MR 16 N | MI 12 N | .7505 | -.0005 | .7497 | -.0005 | 7100 | 5840 |
| MR 16 N | MI 13 N | .8129 | -.0005 | .8121 | -.0005 | 7100 | 5840 |
| MR 16 | MI 12 | .7505 | -.0005 | .7497 | -.0005 | 10600 | 8000 |
| MR 16 | MI 13 | .8129 | -.0005 | .8121 | -.0005 | 10600 | 8000 |
| MR 18 N | MI 14 N | .8754 | -.0005 | .8746 | -.0005 | 12200 | 8720 |
| MR 18 N | MI 15 N | .9379 | -.0005 | .9371 | -.0005 | 12200 | 8720 |
| MR 18 | MI 14 | .8754 | -.0005 | .8746 | -.0005 | 16300 | 10900 |
| MR 18 | MI 15 | .9379 | -.0005 | .9371 | -.0005 | 16300 | 10900 |
| MR 20 N | MI 16 N | 1,0004 | -.0005 | .9996 | -.0005 | 13100 | 9020 |
| MR 20 | MI 16 | 1,0004 | -.0005 | .9996 | -.0005 | 17500 | 11300 |
| MR 22 N | MI 18 N | 1.1255 | -.0005 | 1.1246 | -.0005 | 14700 | 9640 |
| MR 22 | MI 17 | 1.0630 | -.0005 | 1.0621 | -.0005 | 19700 | 12100 |
| MR 22 | MI 18 | 1.1255 | -.0005 | 1.1246 | -.0005 | 19700 | 12100 |
| MR 24 N | MI 20 N | 1.2505 | -.0005 | 1.2496 | -.0005 | 15500 | 10300 |
| MR 24 | MI 19 | 1.1880 | -.0005 | 1.1871 | -.0005 | 20800 | 13000 |
| MR 24 | MI 20 | 1.2505 | -.0005 | 1.2496 | -.0005 | 20800 | 13000 |
| MR 26 N | MI 21 N | 1.3130 | -.0005 | 1.3121 | -.0005 | 16400 | 1060 |
| MR 26 | MI 21 | 1.3130 | -.0005 | 1.3121 | -.0005 | 22100 | 13300 |
| MR 26 | MI 22 4S | 1.3755 | -.0005 | 1.3746 | -.0005 | 22100 | 13300 |
| MR 28 N | MI 24 N | 1,5005 | -.0005 | 1,4996 | -.0005 | 18100 | 11200 |
| MR 28 | MI 22 | 1.3755 | -.0005 | 1.3746 | -.0005 | 24400 | 14100 |
| MR 28 | MI 23 | 1.4380 | -.0005 | 1.4371 | -.0005 | 24400 | 14100 |
| MR 28 | MI 24 | 1,5005 | -.0005 | 1,4996 | -.0005 | 24400 | 14400 |
| MR 30 | MI 25 4S | 1,5630 | -.0005 | 1,5621 | -.0005 | 25600 | 14400 |
| MR 31 | MI 26 2S | 1.6255 | -.0005 | 1.6246 | -.0005 | 22400 | 12400 |
| MR 32 N | MI 26 N | 1.6255 | -.0005 | 1.6246 | -.0005 | 20700 | 12000 |
| MR 32 | MI 25 | 1,5630 | -.0005 | 1,5621 | -.0005 | 27900 | 15200 |
| MR 32 | MI 26 | 1.6255 | -.0005 | 1.6246 | -.0005 | 27900 | 15200 |
| MR 32 | MI 27 | 1.6880 | -.0005 | 1.6871 | -.0005 | 27900 | 15200 |
| MR 36 N | MI 28 N | 1,7505 | -.0005 | 1,7496 | -.0005 | 39100 | 22400 |
| MR 36 | MI 28 | 1,7505 | -.0005 | 1,7496 | -.0005 | 47400 | 26000 |
| MR 36 | MI 30 | 1,8755 | -.0005 | 1,8746 | -.0005 | 47400 | 26000 |
| MR 40 N | MI 32 N | 2.0005 | -.0005 | 1,9996 | -.0005 | 42900 | 23400 |
| MR 40 | MI 31 | 1.9380 | -.0005 | 1.9371 | -.0005 | 52100 | 27200 |
| MR 40 | MI 32 | 2.0005 | -.0005 | 1,9996 | -.0005 | 52100 | 27200 |
| MR 40 | MI 34 | 2.1258 | -.0005 | 2.1247 | -.0005 | 52100 | 27200 |
