Detail produk:
|
| Nama: | Batang Penghubung Menggunakan Rol Jarum dan Bantalan Rakitan Kandang | Kategori: | Rol jarum dan rakitan sangkar |
|---|---|---|---|
| Solusi Penyegelan: | Terbuka, Tanpa Segel | Ukuran: | Diameter Poros dari 8mm hingga 20mm |
| Elemen Bergulir: | Rol Jarum | Bahan Kandang: | Baja |
| Bahan Rol Jarum: | Bantalan Baja Berkualitas | Pengobatan permukaan: | Disesuaikan |
| Cahaya Tinggi: | 8mm Bantalan Rol Jarum,Batang Penghubung jarum rol kandang perakitan,20mm Bantalan Rol Jarum |
||

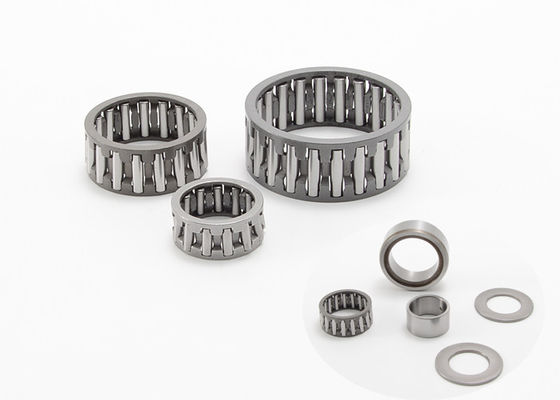

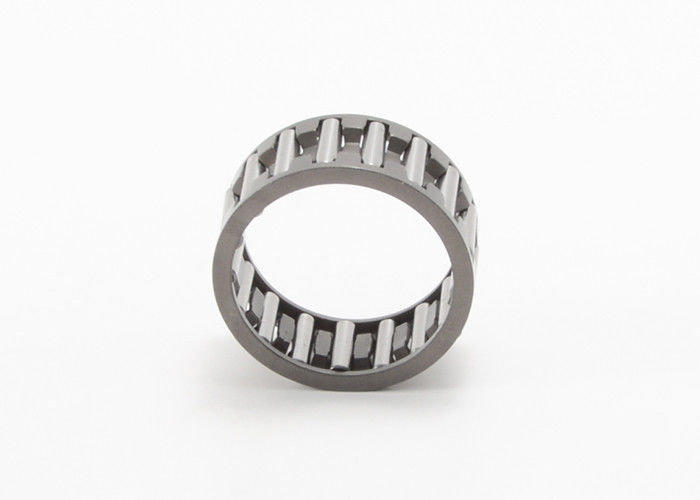

Batang Penghubung Menggunakan Needle Roller dan Cage Assembly Bearing KBK10X14X12
Rakitan rol jarum dan sangkar yang menggunakan batang terutama digunakan untuk engine, kompresor, dan pemandu engkol lainnya.
Penunjukan rol jarum batang dan rakitan sangkar terdiri dari huruf dan angka.Huruf KZK melambangkan rakitan pinus engkol dan KBK melambangkan rakitan pin piston.
Rol jarum dan rakitan sangkar untuk pin engkol KZK mengadaptasi sangkar tipe-M dengan kinerja yang andal.Ini memiliki persyaratan khusus.Permukaan sangkar bisa berlapis perak atau berlapis tembaga.
Rakitan rol jarum dan sangkar untuk pin piston KBK berbeda dengan KZK (pemandu eksternal untuk pin engkol).Ini dipandu secara internal pada pin piston), sehingga menambah panjang jarum.
Batang Penghubung Menggunakan Rol Jarum dan Rakitan Kandang Detail Bantalan:
|
Batang Diameter |
Penunjukan bantalan |
Massa Kira-kira |
Dimensi Batas | Peringkat Beban Dasar | ||||
| Kode Saat Ini | Kode Asli | Fw | Ew | SM | Dinamis | Statis | ||
| mm | g | mm | N | |||||
| 8 | KBK8X11X10 | 39241/8 | 1.85 | 8 | 11 | 10 | 3500 | 4000 |
| KBK8X12X10 | 29242/8 | 2 | 8 | 12 | 10 | 3700 | 4100 | |
| 9 | KBK9X12X11.5 | 2.4 | 9 | 12 | 11.5 | 4200 | 4800 | |
| KBK9X12X13 | 49241/9 | 2.75 | 9 | 12 | 13 | 4600 | 5800 | |
| KBK9X12X14 | 3.5 | 9 | 12 | 14 | 4700 | 5900 | ||
| KBK9X13X12 | 39242/9 | 4.1 | 9 | 13 | 12 | 5300 | 5700 | |
| KBK9X13X12.5 | 4.9 | 9 | 13 | 12.5 | 5300 | 5700 | ||
| KBK9X13X13 | 39242/9 | 5.1 | 9 | 13 | 13 | 5350 | 5600 | |
| 10 | KBK10X13X8 | 29241/10 | 2 | 10 | 13 | 8 | 4000 | 5000 |
| KBK10X13X10 | 39241/10 | 2.4 | 10 | 13 | 10 | 4200 | 5200 | |
| KBK10X13X14.5 | 59241/10 | 5.1 | 10 | 13 | 14.5 | 5400 | 6600 | |
| KBK10X13X16 | 5.7 | 10 | 13 | 16 | 6800 | 7700 | ||
| KBK10X14X10 | 29242/10 | 3.4 | 10 | 14 | 10 | 4400 | 4600 | |
| KBK10X14X11 | 4 | 10 | 14 | 11 | 5200 | 5700 | ||
| KBK10X14X12 | 4.5 | 10 | 14 | 12 | 5400 | 6000 | ||
| KBK10X14X12.5 | 4.85 | 10 | 14 | 12.5 | 5600 | 6200 | ||
| KBK10X14X13 | 39242/10 | 5.4 | 10 | 14 | 13 | 5600 | 6200 | |
| 11 | KBK11X15X17 | 5 | 11 | 15 | 17 | 5200 | 7000 | |
| 12 | KBK12X15X13 | 49241/12 | 4.6 | 12 | 15 | 13 | 5500 | 7300 |
| KBK12X15X14.3 | 5.4 | 12 | 15 | 14.3 | 5800 | 7700 | ||
| KBK12X15X15 | 59241/12 | 5.6 | 12 | 15 | 15 | 5900 | 7800 | |
| KBK12X15X16.5 | 6.2 | 12 | 15 | 16.6 | 6800 | 9900 | ||
| KBK12X15X17 | 69241/12 | 6.3 | 12 | 15 | 17 | 7000 | 10.000 | |
| KBK12X15X17.5 | 6.5 | 12 | 15 | 17.5 | 7000 | 10.000 | ||
| KBK12X16X13 | 39242/12 | 6.7 | 12 | 16 | 13 | 6300 | 7600 | |
| KBK12X16X15 | 149242/12KY | 7.9 | 12 | 16 | 15 | 7500 | 9000 | |
| KBK12X16X15.5 | 8.3 | 12 | 16 | 15.5 | 7600 | 10.000 | ||
| KBK12X16X16 | 59241/12 | 8.5 | 12 | 16 | 16 | 7800 | 9300 | |
| KBK12X16X17 | 59242/12 | 9.2 | 12 | 16 | 17 | 7900 | 9400 | |
| KBK12X17X14 | 8 | 12 | 17 | 14 | 8000 | 9500 | ||
| KBK12X17X14.3 | 8.4 | 12 | 17 | 14.3 | 8000 | 9500 | ||
| KBK19X17X14.8 | 8.8 | 12 | 17 | 14.8 | 8300 | 9800 | ||
| 13 | KBK13X17X14.5 | 7.1 | 13 | 17 | 14.5 | 8300 | 10200 | |
| KBK13X17X17.5 | 8.6 | 13 | 17 | 17.5 | 9500 | 12100 | ||
| 14 | KBK14X18X10 | 29241/14 | 4.6 | 14 | 18 | 10 | 6260 | 7400 |
| KBK14X18X12 | 6.6 | 14 | 18 | 12 | 6380 | 7570 | ||
| KBK14X18X13 | 39241/14 | 7.6 | 14 | 18 | 13 | 7300 | 8700 | |
| KBK14X18X14 | 6.33 | 14 | 18 | 14 | 7400 | 8800 | ||
| KBK14X18X14.5 | 8 | 14 | 18 | 14.5 | 7400 | 8800 | ||
| 14 | KBK14X18X15 | 49241/14 | 8.3 | 14 | 18 | 15 | 7600 | 8990 |
| KBK14X18X16.5 | 9.6 | 14 | 18 | 16.5 | 8800 | 9700 | ||
| KBK14X18X17 | 59241/14 | 10.1 | 14 | 18 | 17 | 8900 | 9800 | |
| KBK14X18X20 | 69241/14 | 12 | 14 | 18 | 20 | 9000 | 10100 | |
| KBK14X18X21 | 13 | 14 | 18 | 21 | 10500 | 12400 | ||
| KBK14X19X22 | 14 | 14 | 18 | 22 | 11100 | 13100 | ||
| KBK14X18X17 | 49242/14K | 10.3 | 14 | 19 | 17 | 11100 | 13100 | |
| 15 | KBK15X19X10 | 29241/15Y | 5 | 15 | 19 | 10 | 6500 | 8600 |
| KBK15X19X18 | 11 | 15 | 19 | 18 | 9900 | 11300 | ||
| KBK15X19X19 | 12 | 15 | 19 | 19 | 10100 | 12800 | ||
| KBK15X19X20 | 69241/15 | 12.9 | 15 | 19 | 20 | 11300 | 15500 | |
| KBK15X20X24 | 18.6 | 15 | 20 | 24 | 14100 | 20000 | ||
| 16 | KBK16X20X19 | SZ-433 | 12 | 16 | 20 | 19 | 11700 | 16800 |
| KBK16X20X20 | 69241/16Y | 13.4 | 16 | 20 | 20 | 12900 | 17600 | |
| KBK16X20X21 | 14 | 16 | 20 | 21 | 12900 | 17600 | ||
| KBK16X20X22 | 15 | 16 | 20 | 22 | 13000 | 18700 | ||
| KBK16X21X19 | 59242/16 | 16 | 16 | 21 | 19 | 13000 | 18700 | |
| 17.5 | KBK17.5X22X16 | 9.3 | 17.5 | 22 | 16 | 11000 | 16300 | |
| 18 | KBK18X22X22 | 16.9 | 18 | 22 | 22 | 11500 | 17700 | |
| KBK18X22X23.5 | 18 | 18 | 22 | 23.5 | 11900 | 19000 | ||
| KBK18X22X24 | 18.4 | 18 | 22 | 24 | 12000 | 20000 | ||
| KBK18X22X25 | 19.1 | 18 | 22 | 25 | 12700 | 20100 | ||
| KBK18X23X21 | 18 | 18 | 23 | 21 | 9900 | 10100 | ||
| KBK18X23X23 | 69242/18 | 20 | 18 | 23 | 23 | 10500 | 12000 | |
| KBK18X24X20 | 49243/18 | 20 | 18 | 24 | 20 | 20000 | 25000 | |
| 20 | KBK20X24X30 | 22.1 | 20 | 24 | 30 | 14900 | 25500 | |
| KBK20X25X22 | 19.5 | 20 | 25 | 22 | 15200 | 22300 | ||
| KBK20X25X25 | 23 | 20 | 25 | 25 | 17100 | 24000 |
