Detail produk:
|
| Nama: | Rol Jarum dan Rakitan Kandang Penggunaan Batang | Jumlah baris: | baris tunggal |
|---|---|---|---|
| Bahan Kandang: | Baja ST14 | Bahan Jarum: | Baja krom GCr15, 100Cr6 |
| Inci - Metrik: | Ukuran Metrik | Merek: | Netral / OEM |
| Ukuran Lubang: | Diameter Poros dari 8mm hingga 40mm | Aplikasi: | bagian transmisi dan rotasi mobil, truk dan trailer. |
| Cahaya Tinggi: | bantalan jarum metrik gcr15,bantalan jarum metrik baja krom,batang menggunakan rol jarum dan rakitan sangkar |
||

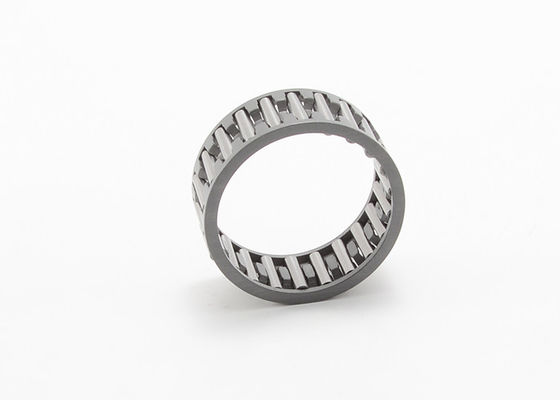

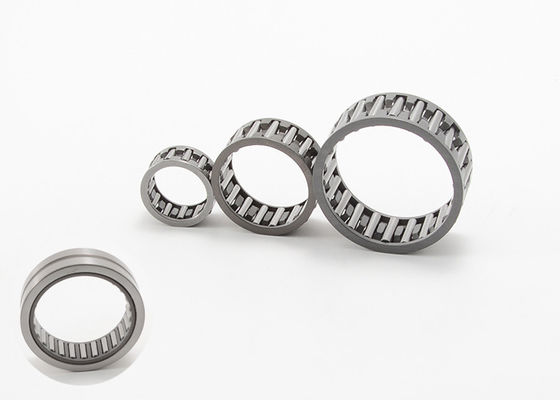

Rol Jarum Penggunaan Batang Dan Rakitan Kandang Bantalan Rol Jarum KZK16X20X10
Rol Jarum Radial Dan Rakitan Kandang Untuk Pengaturan Bantalan Batang Penghubung
1. Struktur: Bantalan rol jarum memiliki daya dukung beban tinggi selain penampang dan kekakuannya yang rendah
2. Beban: Mereka sangat cocok untuk pengaturan bantalan di mana ruang radial terbatas
3. Penggunaan: Banyak digunakan di sepeda motor, moped, mobil, alat listrik/pneumatik, industri tinggi/teknik dan mesin cetak dan peralatan mesin.
4. Bahan: Baja krom 100Cr6 untuk jarum, Baja ST12 atau ST14 untuk kandang.
5. Permukaan akhir: Permukaan berlapis perak atau tembaga
Needle Roller Bearing Rod-use Needle Roller Dan Cage Assemblies Spesifikasi:
|
Batang Diameter |
Penunjukan bantalan |
Massa Kira-kira |
Dimensi Batas | Peringkat Beban Dasar | ||||
| Kode Saat Ini | Kode Asli | Fw | Ew | SM | Dinamis | Statis | ||
| mm | g | mm | N | |||||
| 8 | KZK8X12X8 | 19242/8 | 1.9 | 8 | 12 | 8 | 4700 | 4580 |
| 10 | KZK10X14X10 | 29242/10 | 3.3 | 10 | 14 | 10 | 5000 | 5160 |
| 12 | KZK12X15X13 | 49241/12 | 3.6 | 12 | 15 | 13 | 5300 | 7400 |
| KZK12X16X10 | 29242/12 | 3.5 | 12 | 16 | 10 | 6100 | 6900 | |
| KZK12X16X11 | 3.7 | 12 | 16 | 11 | 6200 | 7100 | ||
| KZK12X17X10 | 19243/12 | 5 | 12 | 17 | 10 | 7020 | 7020 | |
| KZK12X18X10 | 19242/12 | 7.8 | 12 | 18 | 10 | 7400 | 7200 | |
| 14 | KZK14X18X10 | 29241/14 | 4 | 14 | 18 | 10 | 7100 | 8500 |
| KZK14X19X10 | 19242/14 | 5.5 | 14 | 19 | 10 | 7300 | 7600 | |
| KZK14X19X12 | 7.5 | 14 | 19 | 12 | 7460 | 7950 | ||
| KZK14.4X20.4X10 | 6.5 | 14.4 | 20.4 | 10 | 8100 | 7800 | ||
| 15 | KZK15X19X9 | 5 | 15 | 19 | 9 | 6800 | 7100 | |
| KZK15X19X10 | 29241/15 | 6 | 15 | 19 | 10 | 7200 | 8400 | |
| KZK15X20X10 | 19242/15 | 7.5 | 15 | 20 | 10 | 7800 | 9100 | |
| KZK15X21X10 | 8.5 | 15 | 21 | 10 | 8400 | 10500 | ||
| KZK15X21X11 | 9.5 | 15 | 21 | 11 | 8500 | 10700 | ||
| KZK15.2X22.2X12 | 11.5 | 15.2 | 22.2 | 12 | 8600 | 11100 | ||
| 16 | KZK16X20X10 | 29241/16 | 5.8 | 16 | 20 | 10 | 8200 | 9200 |
| KZK16X20X24 | 79241/16 | 6.3 | 16 | 20 | 24 | 8700 | 9400 | |
| KZK16X21X10 | 19242/16 | 5.8 | 16 | 21 | 10 | 8800 | 9800 | |
| KZK16X22X12 | 19243/16 | 9.5 | 16 | 22 | 12 | 11000 | 11900 | |
| KZK16X22X14 | 11 | 16 | 22 | 14 | 13200 | 13930 | ||
| 17 | KZK17X21X10 | 29241/17 | 6.7 | 17 | 21 | 10 | 7600 | 9000 |
| KZK17X23X11 | 9.5 | 17 | 23 | 11 | 8100 | 11300 | ||
| 18 | KZK18X22X10 | 29241/18 | 6.9 | 18 | 22 | 10 | 7600 | 9800 |
| KZK18X22X24 | 7.2 | 18 | 22 | 24 | 10100 | 17200 | ||
| KZK18X24X11.6 | 19243/18 | 10 | 18 | 24 | 11.6 | 11600 | 13100 | |
| KZK18X24X12 | 19243/18 | 10 | 18 | 24 | 12 | 11600 | 13100 | |
| KZK18X24X13.3 | 12.4 | 18 | 24 | 13.3 | 9000 | 10700 | ||
| KZK18X24X13.5 | 12.4 | 18 | 24 | 13.5 | 9000 | 10700 | ||
| KZK18X24X15 | 29243/18 | 14 | 18 | 24 | 15 | 13200 | 15500 | |
| 19 | KZK19X25X16 | 19244/19K | 13.9 | 19 | 25 | 16 | 12100 | 15500 |
| KZK19X28X14 | 20 | 19 | 28 | 14 | 12100 | 15000 | ||
| 20 | KZK20X25X16 | 12 | 20 | 25 | 16 | 9900 | 12300 | |
| KZK20X26X12 | 19243/20 | 9.6 | 20 | 26 | 12 | 10100 | 12500 | |
| KZK20X26X14 | 12 | 20 | 26 | 14 | 12600 | 16700 | ||
| KZK20X26X17 | 9246/20 | 17 | 20 | 26 | 17 | 12700 | 17600 | |
| 22 | KZK22X28X13 | 15 | 22 | 28 | 13 | 11900 | 16500 | |
| KZK22X28X14 | 16 | 22 | 28 | 14 | 12600 | 16800 | ||
| 22 | KZK22X28X15 | 29242/22 | 16.7 | 22 | 28 | 15 | 13500 | 18500 |
| KZK22X28X16 | 29243/22K | 18 | 22 | 28 | 16 | 14400 | 20100 | |
| KZK22X29X15 | 15.2 | 22 | 29 | 15 | 17800 | 21800 | ||
| KZK22X29X16 | 19244/32 | 19 | 22 | 29 | 16 | 17800 | 21800 | |
| KZK22X30X16 | SZ-432 | 25.7 | 22 | 30 | 16 | 18700 | 22300 | |
| 23 | KZK23X29X13 | 12 | 23 | 29 | 13 | 10.000 | 11300 | |
| KZK23X30X14 | 19.4 | 23 | 30 | 14 | 9350 | 10100 | ||
| KZK23X30X16 | 22 | 23 | 30 | 16 | 9780 | 11800 | ||
| 23.1 | KZK23.1X28.1X14 | 29242/23.1 | 12.9 | 23.1 | 28.1 | 14 | 10600 | 15800 |
| 24 | KZK24X30X15 | 17 | 24 | 30 | 15 | 11200 | 13700 | |
| KZK24X30X16 | 18 | 24 | 30 | 16 | 11200 | 13700 | ||
| 25 | KZK25X30X28 | 69245/25 | 24 | 25 | 30 | 28 | 13300 | 15200 |
| KZK25X31X12 | 19243/25K | 16 | 25 | 31 | 12 | 8700 | 8800 | |
| KZK25X31X17 | 39243/25 | 23 | 25 | 31 | 17 | 9200 | 9750 | |
| KZK25X31X20 | 49243/25 | 26 | 25 | 31 | 20 | 9700 | 10600 | |
| KZK25X32X16 | 19244/25 | 22.7 | 25 | 32 | 16 | 18200 | 23100 | |
| 25.1 | KZK25.1X30.1X14 | 14.1 | 25.1 | 30.1 | 14 | 13700 | 19000 | |
| 26 | KZK26X34X16 | 9248/26 | 25 | 26 | 34 | 16 | 11700 | 17500 |
| 28 | KZK28X33X14 | 15.7 | 28 | 33 | 14 | 13200 | 21900 | |
| KZK28X34X14 | 20 | 28 | 34 | 14 | 16500 | 20700 | ||
| KZK28X35X15 | 25 | 28 | 35 | 15 | 18000 | 22000 | ||
| KZK28X35X16 | 19243/28 | 27 | 28 | 35 | 16 | 18900 | 23000 | |
| KZK28X36X16 | 29.1 | 28 | 36 | 16 | 19500 | 27000 | ||
| KZK28X38X13.6 | 40 | 28 | 38 | 13.6 | 17300 | 20300 | ||
| 30 | KZK30X36X16 | 28.5 | 30 | 36 | 16 | 18900 | 22800 | |
| KZK30X37X16 | 19243/30 | 29 | 30 | 37 | 16 | 21500 | 30500 | |
| KZK30X38X16 | 34.4 | 30 | 38 | 16 | 22700 | 32600 | ||
| KZK30X38X18 | 38.8 | 30 | 38 | 18 | 26200 | 39600 | ||
| 32 | KZK32X40X22 | 19244/32K | 50 | 32 | 40 | 22 | 27800 | 39300 |
| KZK32X42X20 | 54 | 32 | 42 | 20 | 29000 | 41000 | ||
| 35 | KZK35X42X20 | 29243/35 | 10 | 35 | 42 | 20 | 26000 | 40200 |
| 38 | KZK38X46X20 | 19244/38 | 50 | 38 | 46 | 20 | 31100 | 43000 |
| 40 | KZK40X48X17 | 50 | 40 | 48 | 17 | 29000 | 39000 | |
| KZK40X48X20 | 19244/40 | 54 | 40 | 48 | 20 | 32500 | 51000 |
